公司簡介

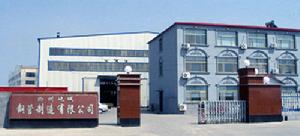

滄州屹城鋼管制造有限公司，坐落於河北省孟村縣付林工業區，是專業生產無縫鋼管的現代化製造企業。公司占地面積3萬平米，年產無縫鋼管及配套管件5萬噸。公司一期投資4500萬元，現擁有￠180自動軋管生產線一條，熱軋穿孔機組2套，互動式雙芯桿冷拔機12台，並有自動旋轉軋頭機、管材矯直機、無水冷退火爐以及表面酸洗、塗層等配套生產設備。公司理化實驗室可承擔產品的各項物理及化學檢測和試驗，已實現線上渦流探傷及漏磁探傷。
公司已先後取得ISO9001質量管理體系認證，美國石油學會API認證（API 5L證號：0988），生產的產品廣泛套用於石油、天然氣、管網、化工 、電力、水煤氣輸送、各種承壓管線等領域。主要產品可按GB 、ASTM 、API 、DIN 、EN、JIS 等標準生產，產品銷往全國並出口東南亞、中東、北非、歐美等十幾個國家和地區。
屹城鋼管致力於產品的精品精做，我們不斷地整合中國最優質的管材行業資源，目前已同國內20多家優秀的生產企業達成合作,代理銷售無縫鋼管、直縫鋼管、螺旋鋼管、管件等多種產品，年銷量達2萬多噸！在產品的生產、調配、外貿加工、包裝出庫、物流配送等環節，嚴把質量關。提升了採購企業的核心競爭力！
生產設備

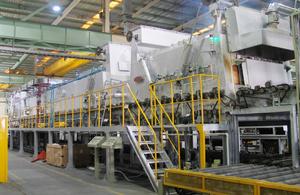

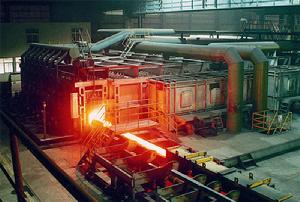

環形加熱爐 Ring shape furnace
主要功能是將鋼管管坯進行加熱達到軋制所需要的溫度。該環形爐最適宜加熱圓管坯，具有加熱均勻、加熱效率高、能耗低、自動化強度高等優點。
The main heat the round billet to reach the temperature required for rolling. This furnace is most suitable fof heating round steel billets. The advantages are even heating, higher effciency, lower energy consumption and higher automatization.

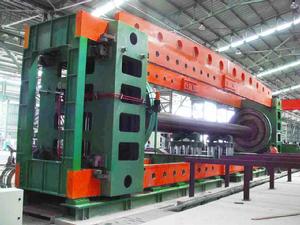

穿孔機 Hole-piercing machine
主要功能是將管坯製成毛管。該穿孔機為錐形輥穿孔機，既適用於普通碳鋼穿孔，又適用於合金鋼穿孔。具有穿孔延伸率大、毛管質量好、穿孔效率高等優點，是目前世界上最先進的毛管生產方式。
The main function is to roll the steel billet to pipe. The machine is based on a coneshaped roller, which is not only suitable for mormal carbon steel, but also for alloy steel. The advantages are high elongation rate, quality coarse pipe, higheffciency, ets . It is currently the most advanced coarse pipe production equipment in the word.

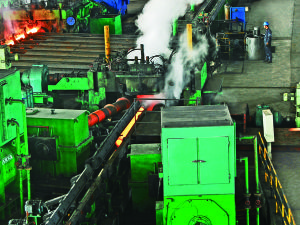

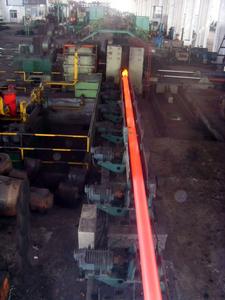

軋管機 Rolling machine
主要功能是將穿孔機軋出的毛管進一步軋制、變形，完成從毛管到荒管的轉變。該軋管機為ASSEL 三輥軋管機，不僅適合生產中厚壁無縫鋼管，而且也可以生產薄壁無縫鋼管，且壁厚精度高可達±5%，是目前世界上先進的三輥軋管機。
The main function is to further roll the coarse pipe that is produced by the hole-punching machine and to change the pipe shape so that primary pipe completed. The machine is an ASSEL rolling machine with 3 rollers. It is not noly suitable for increased wall thickness seamless pipes but also for small thickness pipes it is also a high precsion equipment (The tolerance can be ±5%). The machine is the most advanced in the world too.
步進爐 Walking furnace
即再加熱爐，主要功能是將荒管再次加熱到規定的溫度，為下一道工序做好準備。該步進爐具有加熱快，加熱溫度均勻、加熱鋼管基本無燒損等優點。
It is a further heating furnace. The main function is to heat the primary pipe to setted temperature for the next process. The advantages are heating quickly and evenly with almost no rejection of pipes because of burning.

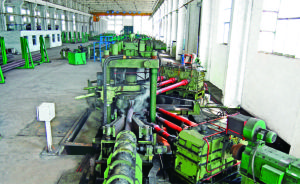

減徑機 （定徑機）
Diameter-decreasing machine
The main function is to roll the primary pipe so that the shape changes again and meets the size that is in accordance with technical requirements. the machine comprises 18 small-lensile-force diameter decreasers. It is the most mature tensile force diameter reducing equipment in China. It is rigorous specitication is that it can produce high precise size and size and wall thickness and small ends cut .

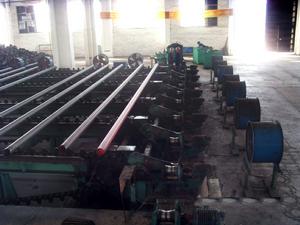

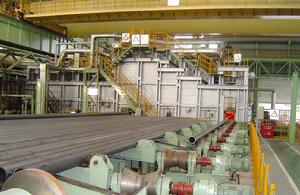

冷床 Cooling bed
The main function is to cool the hot steel pipe to less than 150℃ . The cooling bed can cool the pipe evenly and low cambering rate .
矯直機 Straightener
The main function is to straighten the pipe in normal temperature so that the straightness meets technical requirements. the machine adopts PLC controlling system . The pipe can be fed-in and come out automatically and auto matically adjusts so that pipe straightened machine works very efficiently and stably .

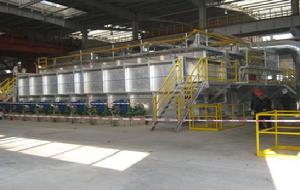

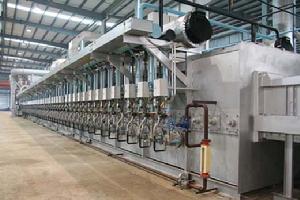

熱處理淬火爐、回火爐
Quenching Tempering furnace熱處理生產線包括兩台淬火爐和兩台回火爐，熱處理淬火爐和回火爐具有正火、淬火+回火、正火+回火的功能。該生產線是以天然氣座位清潔能源，採用先進的脈衝燃燒技術，具有高產、優質、低消耗及生產操作自動化等優點，可生產N80-QL80、P110等高剛級、抗擠毀系列油套管產品，提高了油套管的剛級性能。
The heat treatment line includes two quenching furnaces and two tempering furnaces. which is used to normalizing , quenching & tempering and mormalizing & tempering . The line Uses natuvantages are high efficjency , low energy consuming high quality and high automatization . ect. The line is suitable for upgrading the high steel grade and high collapsing resistant OTCG such as N80-Q P110 ect. because it is capable to improve the steel's properties.
 |  |
 |  |
檢測設備
為了提高產品的市場競爭力，公司配備了較全面的、專業精準度較高的生產線上和線下檢測設備。力求每一根鋼管 無論化學成分、機械性能以及外觀尺寸的精準度都達到標準的要求，並且處於行業水平先領先位置。 | ||||
 |  | |||

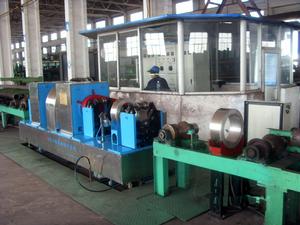

鋼管漏磁高速檢測系統 MFL detector for the steel pipe | 小口徑鋼管水壓測試 Hydraulic testing for small diameter | |||
 |  | |||

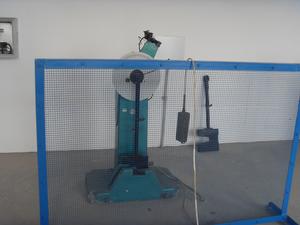

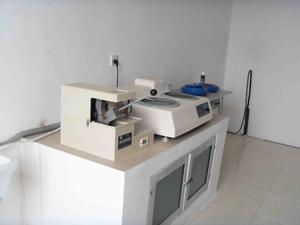

金相試驗檢測設備 Metallographic detector | 鐘擺式衝擊試驗機 Pendulum impact tester | |||
 |  | |||

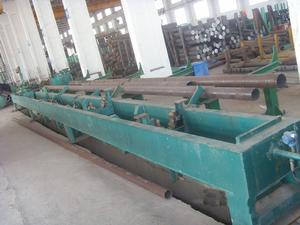

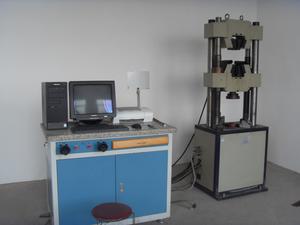

鋼管靜水壓試驗機 Hydraulic testing machine | 萬能試驗機 Universal testing machine | |||
生產標準
ASTM A106
ASTM A106--美國材料與試驗協會標準Standard American Society for testing & Materials
用途 Application:適用於彎曲、卷邊及類似的成形加工。
It is used for the machining for bending, bending, border--coiling and similar shape forming.
主要生產鋼管牌號 Main steel Tube Grade: A、B、C等。
| 標準 | 牌號 | 化學成分 | 機械性能 | ||||||||||
| C | Si | Mn | P | S | Cr | Mo | Cu | Ni | V | 抗拉強度 | 屈服強度 | ||
ASTM A106 | A | ≤ 0.25 | ≥ 0.1 | 0.27- 0.93 | ≤ 0.035 | ≤ 0.035 | ≤ 0.4 | ≤ 0.15 | ≤ 0.4 | ≤ 0.4 | ≤ 0.08 | ≥330 | ≥205 |
| B | ≤ 0.30 | ≥ 0.1 | 0.29- 1.06 | ≤ 0.035 | ≤ 0.035 | ≤ 0.4 | ≤ 0.15 | ≤ 0.4 | ≤ 0.4 | ≤ 0.08 | ≥415 | ≥240 | |
| C | ≤ 0.35 | ≥ 0.1 | 0.29- 1.06 | ≤ 0.035 | ≤ 0.035 | ≤ 0.4 | ≤ 0.15 | ≤ 0.4 | ≤ 0.4 | ≤ 0.08 | ≥485 | ≥275 | |
ASTM A53
ASTM A53--美國材料與試驗協會標準Standard American Society for Testing&Materials
用途：適用於作受力及承壓件，也可以用於一般用途的蒸汽、水、氣體及空氣管線。
Application: It is applied as pressed and forced parts and as pipeline for steam water gas and
atmosphere devlivery.
主要生產鋼管牌號 Main steel Tube Grade: A、B等。
| 標準 | 牌號 | 化學成分 | 機械性能 | ||||||||||
| C | Si | Mn | P | S | Cr | Mo | Cu | Ni | V | 抗拉強度 | 屈服強度 | ||
ASTM A53 | A | ≤ 0.25 | / | ≤ 0.95 | ≤ 0.05 | ≤ 0.06 | ≤ 0.4 | ≤ 0.40 | ≤ 0.15 | ≤ 0.4 | ≤ 0.08 | ≥330 | ≥205 |
| B | ≤ 0.30 | / | ≤ 1.20 | ≤ 0.05 | ≤ 0.06 | ≤ 0.4 | ≤ 0.40 | ≤ 0.15 | ≤ 0.4 | ≤ 0.08 | ≥415 | ≥240 | |
API SPEC 5L
標準：API SPEC 5L \ ISO3183 \ GB/T9711用途：Application 用於石油 天然氣工業中的氣 水 油運輸
It is used for converying gas water , and petroleum for and natural gas industries
主要生產鋼管牌號 Main Steel Tube Grade：
Gr. A / L210 Gr.B / L245 X42 / L290 X52 / L360
機械性能 Mechanical Properties
標準 Standard | 鋼級 Grade | 屈服強度（Mpa） Yield Strength | 抗拉強度（Mpa） Tensile strength | 伸長率（%） Elongation | 衝擊功（J） Impact Energy |
API SPEC ISO3183 GB/T9711 | PSL1 | 查 API SPEC 5L表3 See table 3 of API SPEC 5L | |||
| A25 / L175 | 172 | 310 | |||
| A / L210 | 207 | 331 | |||
| B / L245 | 241 | 414 | |||
| X42 / L290 | 290 | 414 | |||
| X46 / L320 | 317 | 434 | |||
| X52 / L360 | 359 | 455 | |||
| X56 / L390 | 386 | 490 | |||
| X60 / L415 | 414 | 517 | |||
| X65 / L450 | 448 | 531 | |||
| X70 / L485 | 483 | 565 | |||
| PSL2 | |||||
| Min Max | Min Max | Min | |||
| B / L245 | 241448 | 441758 | 41（27） | ||
| X42 / L290 | 290496 | 414 758 | 41（27） | ||
| X46 / L320 | 317524 | 434 758 | 41（27） | ||
| X52 / L360 | 359531 | 455 758 | 41（27） | ||
| X56 / L390 | 386544 | 490 758 | 41（27） | ||
| X60 / L415 | 414565 | 517 758 | 41（27） | ||
| X65 / L450 | 448600 | 531 758 | 41（27） | ||
| X70 / L485 | 483621 | 565 758 | 41（27） | ||
| X80 / L555 | 552690 | 621 827 | 101（68） | ||
化學成分（Chemical Composition）
標準 Standard | 鋼級 Grade | C | Mn | P | S | |
API SPEC ISO3183 G | Max | Max | Min | Max | Max | |
| PSL1 | ||||||
| A25 / L175 | 0.21 | 0.60 | 0.030 | 0.030 | ||
| A25P / L175P | 0.21 | 0.60 | 0.45 | 0.030 | 0.030 | |
| A / L210 | 0.21 | 0.60 | 0.030 | 0.030 | ||
| B / L245 | 0.28 | 1.20 | 0.030 | 0.030 | ||
| X42 / L290 | 0.28 | 1.30 | 0.030 | 0.030 | ||
| X46 / L320 X52 / L360 X56 / L390 | 0.28 | 1.40 | 0.030 | 0.030 | ||
| X60 / L425 X65 / L450 X70 / L485 | 0.28 | 1.40 | 0.030 | 0.030 | ||
| PSL2 | ||||||
| B / L245 | 0.24 | 1.20 | 0.025 | 0.015 | ||
| X42 / L290 | 0.24 | 1.20 | 0.025 | 0.015 | ||
| X46 / L320 X52 / L360 X56 / L485 | 0.24 | 1.20 | 0.025 | 0.015 | ||
| X60 / L425 X65 / L450 X70 / L485 | 0.24 | 1.20 | 0.025 | 0.015 | ||
