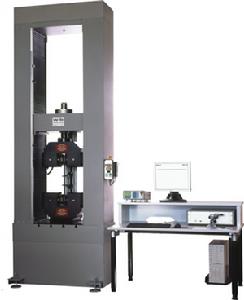

電液伺服材料試驗系統
技術諮詢 [email protected]電液伺服材料試驗系統
Shore Western 公司是一家總部位於美國加利福尼亞州Monrovia市的高科技企業，在提供高性價比的結構和材料試驗系統領域有著世界範圍的卓著聲譽。在設計、製造高性能電液伺服系統方面有著超過35年的豐富經驗。它為科研、產品開發、質量控制等領域的用戶提供了廣泛的產品及服務。其產品主要包括：結構載入系統、材料試驗系統，動靜態液壓作動缸、油源、電控分油器等。
Shore Western 電液伺服材料系統主要包括電液伺服控制器、動靜態電液伺服作動器框架、液壓油源、夾具及各種附屬檔案，包括引伸計和環境模擬裝置等。
Shore Western 材料試驗系統可套用材料和構件的靜力、疲勞及斷裂等試驗。
電液伺服結構載入試驗系統
Shore Western 公司是一家總部位於美國加利福尼亞州Monrovia市的高科技企業，在提供高性價比的結構和材料試驗系統領域有著世界範圍的卓著聲譽。在設計、製造高性能電液伺服系統方面有著超過35年的豐富經驗。它為科研、產品開發、質量控制等領域的用戶提供了廣泛的產品及服務。其產品主要包括：結構載入系統、材料試驗系統，動靜態液壓作動缸、油源、電控分油器等。
Shore Western 電液伺服結構載入系統主要套用於：土木工程結構測試、汽車零部件試驗、飛機結構試驗、生物力學結構測試及摩擦模擬系統。
Shore Western 電液伺服結構載入系統主要包括電液伺服控制器、動靜態電液伺服作動缸、液壓油源、管路分布系統等。
Load Frames
Shore Western manufactures load frames to meet any requirement. Designed to react the full force of your test application the result is an extremely rigid, backlash-free test system that produces repeatable and reliable results. Shore Western’s standard line of load frames includes tabletop and freestanding two and four Column units designed for an infinite fatigue life and offer the highest quality of workmanship, providing years of performance. Typical applications include cyclic materials testing, high-frequency fatigue testing and general purpose precision force applications.
Features include:
Modular design simplifies system configuration and ensures consistent test results.
Standard 3000 psi (207 bar) operating pressure.
infinitely adjustable crosshead height capability.
Shore Western seal and bearing designs offer durability, performance and long life.
Shore Western offers a variety of load frame models varying from 1 KIP (4.4 kN) models to huge 1,000 KIP (4,448 kN) force rated units. Our bi-axial load frames offer both tension and compression as well as torsional capability. Combined with an SC6000 control system they create a complete Material Test System. Options include crossheads with hydraulic lifts and locks and we can also supply a wide variety of grips, fixtures, load cells and extensometers.
301 Series Table Top Load Frames
301 Series load frames are designed specifically to provide fatigue or compression/ tension test capability, delivering up to 10,000 lbs. (44.48 kN) force in only 1.7 sq. ft. (.158 sq. m) of bench space. The 301 Series Load Frame utilizes a 2-column symmetrical construction with fixed-platen, moveable crosshead configuration. These units are cost effective replacements for the MTS 858 load frames.
302 Series Load Frames
302 Series Load Frames are available in standard models ranging from 22 KIP (98 kN) through 110 KIP (489 kN) units using a 2-column symmetrical construction with fixed-platen, moveable crosshead configurations. These units are cost effective replacements for the MTS 318 load frames.
304 Series Load Frames
304 Series Load Frames are available in standard models ranging from 110 KIP (489 kN) through 550 KIP (2,447 kN) with larger units designed and built to meet specific applications. The 304 Series incorporates a 4-column symmetrical construction with fixed-platen, moveable crosshead configurations. These units are cost effective replacements for the MTS 311 load frames
306 Series Load Frames
306 Series Axial/Torsional Load Frames are designed to perform static and dynamic bi-axial materials testing. The 306 Series Load Frames are available in four standard force-torque configurations; 10/5,000, 20/10,000, 50/20,000, and 100/50,000 KIP/lbf-in (22.2/565, 44.5/1130, 88.9/2260 and 222.4/5649 kN/N-m) with other force combinations available on special order. The 306 Series incorporates a 2-column symmetrical construction with fixed-platen, moveable crosshead configurations.
322 Series Load Tables
322 Series Load Tables increase your test configuration ability by using a T-slot table base and offering the same performance as the 302, 304 and 306 Series Load Frames. The 322 Series incorporates same symmetrical column construction and moveable crosshead configurations as the 302, 304 and 306 Series Load Frames. These units are cost effective replacements for the MTS 322 load frames.
Accessories
Shore Western can supply a wide variety of hydraulic power units, service manifolds, grips, fixtures, load cells and extensometers to customize your testing system.
