簡介

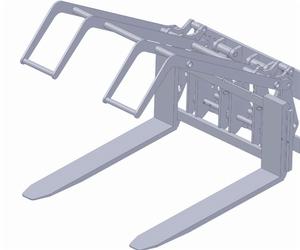

中德諾克圓木夾名稱、圓木夾Log clamp（圓木夾、木材搬運器、木材夾抱機、夾抱車、木材夾具、木材抱夾）
套用
適用於各種圓形木材的搬運、堆垛及裝卸作業，節約勞動力，減少勞動者的勞動強度，安全高效。Suitable for the safe and efficient carrying, stacking, loading and unloading of various logs, saving labor force and reducing work intensity.
特點
貨叉可調式，適用各種長度的圓木搬運；液壓元件設計合理，有效保護液壓系統，使用壽命長；
整體式閥板設計，安裝簡便，易懂、易操作；
各關節部位均採用無油潤滑系統，免維護，對銷軸起到良好的保護作用；
增加前傾角度便於操作者插取、裝卸貨物；
設計合理，結構緊湊，視野寬闊，維護簡便。
The adjustable fork is suitable for carrying different-length logs.
The hydraulic elements are reasonably designed to ensure the effective protection to the hydraulic system and a long life.
The integrally designed valve with high strength makes it easy to install, understand and operate.
The oil-free lubrication system applied to each joint ensures better protection of the pins and axles, free of maintenance.
The increased forward-tilting angle makes it easy for an operator to take, load and unload goods.
Reasonable design,compact structure, broad horizon and easy for maintenance
型號 | 承載能力 | 框架尺寸 | 上下傾斜角度 | 貨叉長度 | 壓齒工作行程 | 安裝等級 | 自重 | 失載距 | 水平重心 | 垂直重心 |
Model | Carrying Capacity | Frame dimension | Up-down tilt angle | Length of fork | raker woking stroke | Installation Grade | Self- weight | Load Loss Distance | Horizontal Center of Gravity | Verticla Center Gravity |
kg | A1×A2(mm) | mm | mm | kg | L(mm) | C2(mm) | C1(mm) | |||
TLF15A-D18C | 1500 | 1590×1350 | 5°/45° | 1200 | 120-1800 | 2 | 649 | 343 | 446 | 331 |
TLF15A-D18F | 1500 | 1740×1350 | 5°/45° | 1350 | 120-1800 | 2 | 670 | 343 | 459 | 347 |
TLF20A-D18C | 2000 | 1590×1350 | 5°/45° | 1200 | 120-1800 | 2/3 | 649 | 346 | 446 | 331 |
TLF20A-D18F | 2000 | 1740×1350 | 5°/45° | 1350 | 120-1800 | 2/3 | 688 | 346 | 459 | 347 |
TLF20A-D18G | 2000 | 1890×1350 | 5°/45° | 1500 | 120-1800 | 2/3 | 714 | 346 | 463 | 352 |
TLF25A-D18C | 2500 | 1593×1350 | 5°/45° | 1200 | 120-1800 | 3 | 662 | 348 | 446 | 331 |
TLF25A-D18F | 2500 | 1743×1350 | 5°/45° | 1350 | 120-1800 | 3 | 703 | 348 | 459 | 347 |
TLF25A-D18G | 2500 | 1893×1350 | 5°/45° | 1500 | 120-1800 | 3 | 729 | 348 | 463 | 352 |
