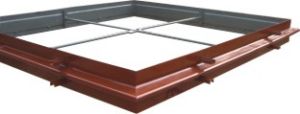

YGFB型矩（方）型單波補償器：
單波補償器它是以波紋管為核心的擾性元件，在管線上可作軸向、橫向和角向三個方向的補償。軸向象補償器為了減少介質的自激現象，在產品內部設有內套管，在很大程度上限制了徑向補償能力，故一般僅用以吸收或補償管道的軸向位移（如果管系中確需少量的徑向位移，也可以吸收軸向、角向和任意三個方向位移的組合；鉸鏈補償器（也稱角向補償器），它以兩個或三個補償器配套使用（單個使用鉸鏈補償器沒有補償能力），用以吸收單平面內的橫向變形；萬向鉸鏈（角向）補償器，由兩個或三個配套使用，可吸收三維方向的變形量。
波紋補償器屬於一種補償元件。利用其工作主體波紋管的有效伸縮變形，以吸收管線、導管、容器等由熱脹冷縮等原因而產生的尺寸變化，或補償管線、導管、容器等的軸向、橫向和角向位移。也可用於降噪減振。在現代工業中用途廣泛。
圓形、矩形、波形補償器(膨脹節)是根據美國CE公司引進技術研製的，是一種在工作中能自由伸縮的彈性補償原件，它結構緊湊，工作可靠，成本低廉，適用性強，有防振、防塵、防失調等功能，主要用於電站鍋爐風煙系統中，也適用於冶金化工等其它類似的煙連線管道。設計時可根據不同要求製成主要吸收單向熱位移得單件膨脹節，也可用於兩個膨脹節組成用以吸收空間三向熱位移，而不造成管道的破壞匯潛心，是保證管道安全可靠運行的必不可缺少的重要原件。
電廠煙風煤管道波紋補償器（圓形單波補償器）用於輸送氣體或含塵氣體，使用壓力從真空~0.1Mpa，使用溫度從-40oC~420oC,任意矩形、圓形截面的煙氣，通風和鼓風機管道，作補償位移減振用。波紋補償器按型式分，有Dg200—3600單波、雙波和三波的圓形補償器各23種規格：有Dg400—1400圓形單波密封式補償器12種規格：有300x400—6000x5000單波、雙波和三波矩形補償器各98種規格。
補償器斷面尺寸(淨空)m2每個波節補償性能(△)mm
預先不拉長預先拉長
介質溫度oC
≤100>100~200>200~300>300~400≤100>100~200>200~300>300~400
<0.5876616141210
≥0.5141311928262218
1、對於雙波補償器上例補償性能的數(△)應該乘1.7
2、對於三波補償器上例補償性能的數(△)應該乘2.5
標號公稱通徑ABLB1L1重量（kg)圖號
毫米矩形單波補償器矩形波節
總圖
DD6301300x40030040060928670923DD6301-01DD6301-02
DD6302300x50050080925.7DD6302-01DD6302-02
DD6303300x60060090928.5DD6303-01DD6303-02
DD6304300x700700100931.2DD6304-01DD6304-02
DD6305400x50040050070980928.5DD6305-01DD6305-02
DD6306400x60060090931.2DD6306-01DD6306-02
DD6307400x700700100934.1DD6307-01DD6307-02
DD6308400x800800110936.8DD6308-01DD6308-02
DD6309500x60050060090934.1DD6309-01DD6309-02
DD6310500x800800809110939.6DD6310-01DD6310-02
DD6311500x900900120942.4DD6311-01DD6311-02
DD6312500x10001000913141369DD6312-01DD6312-02
DD6313600x700600700909100939.6DD6313-01DD6313-02
DD6314600x800800100942.4DD6314-01DD6314-02
DD6315600x9001013131369DD6315-01DD6315-02
DD6316700x500700500809100936.8DD6316-01DD6316-02
DD6317700x700700100942.4DD6317-01DD6317-02
DD6318700x8008001113121369DD6318-01DD6318-02
DD6319800x800800800121373.1DD6319-01DD6319-02
DD6320800x12001200161390DD6320-01DD6320-02
DD6321800x160016002013106.8DD6321-01DD6321-02
DD6322900x400900400709120939.6DD6322-01DD6322-02
DD6323900x7007001113131373.1DD6323-01DD6323-02
DD6324900x12001200709161394.1DD6324-01DD6324-02
DD63251000x60010006001013141373.1DD6325-01DD6325-02
DD63261000×700700111377.4DD6326-01DD6326-02
DD63271000×800800121381.5DD6327-01DD6327-02
DD63281000×10001000141390DD6328-01DD6328-02
DD63291200×6006001013161381.5DD6329-01DD6329-02
DD63301200×700700111385.7DD6330-01DD6330-02
DD63311200×8001200800121390DD6331-01DD6331-02
DD63321200×10001000141398.3DD6332-01DD6332-02
DD63331200×120012001613106.8DD6333-01DD6333-02
DD63341400×70014007001113181394.1DD6334-01DD6334-02
DD63351400×800800121398.3DD6335-01DD6335-02
DD63361400×9009001313102.5DD6336-01DD6336-02
DD63371400×10001413106.8DD6337-01DD6337-02
DD63381400×120012001613115DD6338-01DD6338-02
DD63391500×800150080012131913102.5DD6339-01DD6339-02
DD63401500×9009001313106.8DD6340-01DD6340-02
DD63411500×100010001413110.9DD6341-01DD6341-02
DD63421500×120012001613119.3DD6342-01DD6342-02
DD63431600×10001600100014132013115DD6343-01DD6343-02
DD63441600×120012001613123.5DD6344-01DD6344-02
DD63451600×140014001813131.9DD6345-01DD6345-02
DD63461600×160016002013140.3DD6346-01DD6346-02
DD63471800×900180090013132213119.3DD6347-01DD6347-02
DD63481800×100010001413123.5DD6348-01DD6348-02
DD63491800×120012001613131.9DD6349-01DD6349-02
DD63501800×140014001813140.3DD6350-01DD6350-02
DD63511800×180018002213157.1DD6351-01DD6351-02
DD63522000×10002000100014132413130.3DD6352-01DD6352-02
DD63532000×130013001713143.4DD6353-01DD6353-02
DD63542000×160016002013155.9DD6354-01DD6354-02
DD63552000×180018002213164.4DD6355-01DD6355-02
DD63562000×200020002413172.8DD6356-01DD6356-02
DD63572200×12002200120016132613148.7DD6357-01DD6357-02
DD63582200×140014001813157.1DD6358-01DD6358-02
DD63592200×160016002013165.5DD6359-02
DD63602200×180018002213173.9DD6360-01DD6360-02
DD63612200×200020002413182.4DD6361-01DD6361-02
DD63622400×12002400120016132813157.1DD6362-01DD6362-01
DD63632400×140014001813165.5DD6363-01DD6363-02
DD63642400×160016002013173.9DD6364-01DD6364-02
DD63652400×180018002213182.4DD6365-01DD6365-02
DD63662400×200020002413190.8DD6366-01DD6366-02
DD63672600×16002600160020133283013182.4DD6367-01DD6367-02
DD63682600×180018002213190.8DD6368-01DD6368-02
DD63692600×2000200025133113282.1DD6369-01DD6369-02
DD63702600×220022002713293.3DD6370-01DD6370-02
DD63712800×18002800180023133313282.1DD6371-01DD6371-02
DD63722800×200020002513293.3DD6372-01DD6372-02
DD63732800×220022002713305.9DD6373-01DD6373-02
DD63742800×240024002913317.3DD6374-01DD6374-02
DD63753000×20003000200025133513305.6DD6375-01DD6375-02
DD63763000×240024002913328.9DD6376-01DD6376-02
DD63773000×260026003113341.5DD6377-01DD6377-02
DD63783200×2200220027133713328.9DD6378-01DD6378-02
DD63793200×2600320026003113352.3DD6379-01DD6379-02
DD63803200×300030003513375.6DD6380-01DD6380-02
DD63813600×24003600240029134113364DD6381-01
DD63823600×280028003313387.3DD6382-01DD6382-02
DD63833600×320032003713410.7DD6383-01DD6383-02
DD63844000×28004000280033134513410.7DD6384-01DD6384-02
DD63854000×300030003513422.3DD6385-01DD6385-02
DD63864000×320032003713434DD6386-01DD6386-02
DD63874500×30004500300035135013451.5DD6387-01DD6387-02
DD63884500×340034003913474.9DD6388-01DD6388-02
DD63894500×400040004513510DD6389-01DD6389-02
DD63905000×34005000340039135513504.2DD6390-01DD6390-02
DD63915000×380038004313527.5DD6391-01DD6391-02
DD63925000×420042004713550.8DD6392-01DD6392-02
DD63935500×36005500360041136013544.6DD6393-01DD6393-02
DD63945500×420042004713579.7DD6394-01DD6394-02
DD63655500×480048005313614.7DD6395-01DD6395-02
DD63966000×40006000400045136513598.6DD6396-01DD6396-02
DD63976000×460046005113623.6DD6397-01DD6397-02
DD63986000×500050005513656DD6398-01DD6398-02
