用途及特點

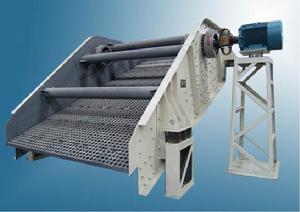

WYA型圓振篩為新鄉威猛冶金設備有限公司所生產的型號,WYA型圓振動篩運動軌跡為圓, 主要用於冶金選礦、選煤、建材、電力等行業乾式物料的分級作業。該系列篩機採用目前國內最先進的環槽鉚釘鉚接,大游隙軸承油潤滑振動器,具有結構簡單,堅固耐用,噪聲低,安裝、維修方便等特點。
工作原理與結構特點WYA型系列圓振篩是利用普通電機外拖動振動器,使篩體沿激振力方向作周期性往復振動,物料在篩面上連續作圓運動,從而達到篩分目的。
WYA型圓振動篩由振動源、篩體、篩網、減振裝置和底托組成,篩機側板採用優質鋼板製作而成,側板與橫樑、激振器底座採用高強度螺栓或環槽鉚釘連線,結構合理,堅固耐用。
塊偏心
型號 | 篩面面積m | 給料粒度mm | 處理量t/h | 雙振幅(mm) | 電機 | 單點動負荷(N) | 最大動負荷(N) | |
型號 | 功率Kw | |||||||
WYA1236 | 4.3 | <200 | 70-250 | 9-11 | Y160M-4 | 11 | ±802 | ±4008 |
2WYA1236 | 2×4.3 | <200 | 70-250 | Y160M-4 | 11 | ±802 | ±4008 | |
WYA1536 | 5.4 | <400 | 200-650 | Y160M-4 | 11 | ±931 | ±4655 | |
2WYA1536 | 2×5.4 | <400 | 200-650 | Y160L-4 | 15 | ±931 | ±4655 | |
WYA1836 | 6.5 | <400 | 250-750 | Y160M-4 | 11 | ±980 | ±4900 | |
2WYA1836 | 2×6.5 | <400 | 250-750 | Y160L-4 | 15 | ±980 | ±4900 | |
WYA1842 | 7.6 | <400 | 300-850 | Y160L-4 | 15 | ±928 | ±4640 | |
2WYA1842 | 2×7.6 | <400 | 300-850 | Y160L-4 | 15 | ±928 | ±4640 | |
WYA1848 | 8.6 | <400 | 400-950 | Y160L-4 | 15 | ±1392 | ±6958 | |
2WYA1848 | 2×8.6 | <400 | 400-950 | Y160L-4 | 15 | ±1392 | ±6958 | |
WYA2148 | 10 | <400 | 450-1150 | Y180M-4 | 18.5 | ±2889 | ±14445 | |
2WYA2148 | 2×10 | <400 | 450-1150 | Y180L-4 | 22 | ±2889 | ±14445 | |
WYA2160 | 12.6 | <400 | 550-1350 | Y200L-4 | 30 | ±2889 | ±14445 | |
2WYA2160 | 2×12.6 | <400 | 550-1350 | Y200L-4 | 30 | ±2889 | ±14445 | |
WYA2460 | 14.4 | <400 | 600-1400 | Y200L-4 | 30 | ±2889 | ±14445 | |
2WYA2460 | 2×14.4 | <400 | 600-1400 | Y200L-4 | 30 | ±2889 | ±14445 |
型號 | 篩面面積㎡ | 給料粒度mm | 篩孔尺寸mm | 處理量t/h | 雙振幅mm | 振頻Hz | 電機型號 | 電機功率Kw | 單點動負荷N |
WYK1224 | 2.88 | ≤200 | 10-40 | 70-250 | 7-9 | 16 | Y132M1-6 | 4.0 | 900 |
2WYK1224 | 2×2.88 | ≤200 | 10-40 | 70-250 | 7-9 | 16 | Y132M2-6 | 5.5 | 1230 |
WYK1530 | 4.5 | ≤400 | 10-40 | 200-650 | 7-9 | 16 | Y160M-6 | 7.5 | 1350 |
2WYK1530 | 2×4.5 | ≤400 | 10-40 | 200-650 | 7-9 | 16 | Y160M-6 | 7.5 | 1750 |
WYK-1536 | 5.4 | ≤400 | 10-40 | 250-750 | 7-9 | 16 | Y160L-6 | 11 | 1700 |
2WYK1536 | 2×5.4 | ≤400 | 10-40 | 250-750 | 7-9 | 16 | Y160L-6 | 11 | 1950 |
WYK1836 | 6.48 | ≤400 | 10-40 | 250-750 | 7-9 | 16 | Y180L-6 | 15 | 1850 |
2WYK1836 | 2×6.48 | ≤400 | 10-40 | 250-750 | 7-9 | 16 | Y225S-6 | 18.5 | 2200 |
WYK-1848 | 8.64 | ≤400 | 10-40 | 250-850 | 8-10 | 12.5 | Y225M-8 | 22 | 2120 |
2WYK1848 | 2×8.64 | ≤400 | 10-40 | 250-850 | 8-10 | 12.5 | Y225M-8 | 22 | 2540 |
WYK2148 | 10.08 | ≤400 | 10-40 | 250-1000 | 8-10 | 12.5 | Y225M-8 | 22 | 1310 |
2WYK2148 | 2×10.08 | ≤400 | 10-40 | 250-1000 | 8-10 | 12.5 | Y250M-8 | 30 | 1550 |
WYK2160 | 12.6 | ≤400 | 10-40 | 250-1200 | 8-10 | 12.5 | Y250M-8 | 30 | 1510 |
2WYK2160 | 2×12.6 | ≤400 | 10-40 | 300-1200 | 8-10 | 12.5 | Y250M-8 | 30 | 1820 |
WYK2665 | 15 | ≤400 | 10-40 | 300-1400 | 8-10 | 12.5 | Y280S-8 | 37 | 1750 |
2WYK2665 | 2×15 | ≤40 | 10-40 | 300-1400 | 8-10 | 12.5 | Y280S-8 | 37 | 2100 |
