常見螺絲

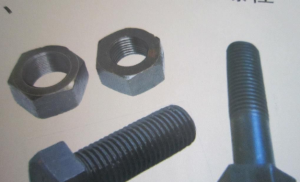

螺絲種類2<一>頭部剖溝,螺絲刀咀型:
a.Slotted:一字
螺絲種類2
螺絲種類2(5張)
b.Phillips:十字
c.Phil-Slot:一字/十字
d.HexScoket:內六角
e.OneWay:單向(只可鎖入,不可退出)
<二>螺絲頭頭型:
a.Flat:平頭(鎖入後,頂部與工作件齊平)
b.Oval:色拉頭
c.Round:圓頭
d.Pan:圓扁頭/盤頭
e.Truss:大圓扁頭
f.Hex:六角頭
<三>外觀表面處理:
a.Z:Zine-Plated:鍍鋅
b.Ni:Ni-Plated:鍍鎳
c.Tin-Plated:鍍錫
d.ZinePlated/GreenIridite:鍍鋅綠膜處理.
e.RadiantPlated:鍍五彩
f.Passivate:抗氧化處理
g.AlodialFinish:無外觀處理
<四>螺紋規格:
a.公制螺絲
螺絲種類螺絲種類1(5張)
Ex:M6x8-PPB
M6x1機械牙螺絲,8mm長,十字溝槽,圓扁頭,鍍黑.
b.美制螺絲
美規螺絲一般以番號標示,
如#2-56,#4-40,#6-32,#8-32,#10-24…etc.
Ex:#2-56(0.086-56):2番56牙
Ex:#4-40(0.112-40):4番40牙
Ex:#6-32(0.138-32):6番32牙
Ex:#8-32(0.164-32):8番32牙
Ex:#10-24(0.190-24):10番24牙
***牙數為每英寸牙的數量,長度須經過換算才是公制mm尺寸,1"(英寸)=25.4mm(毫米).***
c.英制螺絲:
標示皆將分母為8,再直接稱分子之番號.
Ex:1/8x0.50-PPB:1分牙螺絲釘x0.50”長,PPB
Ex:5/16x0.50-PPB=2.5/8x0.50-PPB:2分半牙螺絲釘x0.50”長,PPB
Ex:5/32x0.50-PPB=1.25/8x0.50-PPB:1分2厘半螺絲釘x0.50”長,PPB
Ex:1/4x0.50-PPB=2/8x0.50-PPB:2分牙螺絲釘x0.50”長,PPB
注:有時會標示粗牙或細牙
UNF:細牙:電子業較常用
UNC:粗牙:重機械結構較常用
Ex:3/8x0.50UNF-PPB:3分細牙螺絲釘x0.50”長,PPB.
或以英制外徑表示,
如0.086-56,0.112-40,0.138-32,0.164-32,0.190-24…etc.
Ex:632-8-PPB.
***英制螺絲外徑和長度長度須經換算才是公制mm尺寸,1"(英寸)=25.4mm(毫米).***

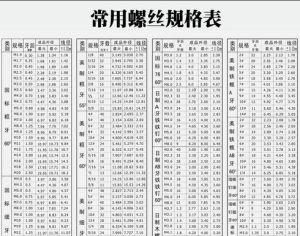

規格表
那么如果有一個螺絲規格表，把螺絲螺紋牙距，螺絲種類，螺絲各方面基本信息都用一個圖表來表示，清楚，明了，簡單易懂。那么使用起來就方便多了。下面把螺絲規格表，把螺絲螺紋牙距規格表顯上，供大家方便使用，查詢。
| 螺絲規格表螺絲螺紋牙距表螺釘規格表 | ||||||||||||
| 類別 | 規格 | 牙距mm | 成品外徑 | 線徑 | 類別 | 規格 | 牙距 | 成品外徑 | 線徑 | |||
| 最大 | 最小 | ±0.02mm | 每英寸 | 最大 | 最小 | ±0.02mm | ||||||
| 國標粗牙60° | M1.4 | 0.30 | 1.38 | 1.34 | 1.16 | 英制粗牙55° | 1/8 | 40 | 3.145 | 3.030 | 2.70 | |
| M1.7 | 0.35 | 1.68 | 1.61 | 1.42 | 5/32 | 32 | 3.945 | 3.795 | 3.38 | |||
| M2.0 | 0.40 | 1.98 | 1.89 | 1.68 | 3/16 | 24 | 4.732 | 4.592 | 4.00 | |||
| M2.3 | 0.40 | 2.28 | 2.19 | 1.98 | 1/4 | 20 | 6.320 | 6.165 | 5.45 | |||
| M2.5 | 0.45 | 2.48 | 2.38 | 2.15 | 5/16 | 18 | 7.905 | 7.737 | 6.94 | |||
| M3.0 | 0.50 | 2.98 | 2.88 | 2.60 | 3/8 | 16 | 9.490 | 9.312 | 8.40 | |||
| M3.5 | 0.60 | 3.47 | 3.36 | 3.02 | 7/16 | 14 | 11.07 | 10.88 | 9.84 | |||
| M4.0 | 0.70 | 3.98 | 3.83 | 3.40 | 1/2 | 12 | 12.66 | 12.46 | 11.22 | |||
| M4.5 | 0.75 | 4.47 | 4.36 | 3.88 | 9/16 | 12 | 14.25 | 14.04 | 12.81 | |||
| M5.0 | 0.80 | 4.98 | 4.83 | 4.30 | 5/8 | 11 | 15.83 | 15.61 | 14.27 | |||
| M6.0 | 1.00 | 5.97 | 5.82 | 5.18 | 美制粗牙60° | 4# | 40 | 2.824 | 2.695 | 2.37 | ||
| M7.0 | 1.00 | 6.97 | 6.82 | 6.18 | 5# | 40 | 3.154 | 3.026 | 2.69 | |||
| M8.0 | 1.25 | 7.96 | 7.79 | 7.02 | 6# | 32 | 3.484 | 3.333 | 2.91 | |||
| M9.0 | 1.25 | 8.96 | 8.79 | 8.01 | 8# | 32 | 4.142 | 3.991 | 3.57 | |||
| M10 | 1.50 | 9.96 | 9.77 | 8.84 | 10# | 24 | 4.8 | 4.618 | 4.05 | |||
| M11 | 1.50 | 10.97 | 10.73 | 9.84 | 12# | 24 | 5.461 | 5.279 | 4.70 | |||
| M12 | 1.75 | 11.95 | 11.76 | 10.7 | 1/4 | 20 | 6.322 | 6.117 | 5.45 | |||
| M14 | 2.00 | 13.95 | 13.74 | 12.5 | 5/16 | 18 | 7.907 | 7.687 | 6.93 | |||
| M16 | 2.00 | 15.95 | 15.74 | 14.5 | 3/8 | 16 | 9.491 | 9.254 | 8.40 | |||
| M18 | 2.50 | 17.95 | 17.71 | 16.2 | 7/16 | 14 | 11.08 | 10.82 | 9.83 | |||
| M20 | 2.50 | 19.95 | 19.71 | 18.2 | 1/2 | 13 | 12.66 | 12.39 | 11.32 | |||
| 國標細牙60° | M4.0 | 0.5 | 3.97 | 3.86 | 3.58 | 9/16 | 12 | 14.25 | 13.96 | 12.80 | ||
| M4.5 | 0.5 | 4.47 | 4.36 | 4.07 | 5/8 | 11 | 15.83 | 15.53 | 14.20 | |||
| M5.0 | 0.5 | 4.97 | 4.86 | 4.57 | 美制細牙60° | 4# | 48 | 2.827 | 2.713 | 2.44 | ||
| M6.0 | 0.75 | 5.97 | 5.85 | 5.41 | 5# | 44 | 3.157 | 3.036 | 2.73 | |||
| M7.0 | 0.75 | 6.97 | 6.85 | 6.41 | 6# | 40 | 3.484 | 3.356 | 3.02 | |||
| M8.0 | 1.00 | 7.97 | 7.83 | 7.24 | 8# | 36 | 4.145 | 4.006 | 3.63 | |||
| M9.0 | 1.00 | 8.97 | 8.83 | 8.24 | 10# | 32 | 4.803 | 4.651 | 4.23 | |||
| M10 | 1.00 | 9.97 | 9.82 | 9.23 | 12# | 28 | 5.461 | 5.296 | 4.81 | |||
| M10 | 1.25 | 9.96 | 9.81 | 9.07 | 1/4 | 28 | 6.324 | 6.16 | 5.68 | |||
| M12 | 1.25 | 11.97 | 11.76 | 11.07 | 5/16 | 24 | 7.909 | 7.727 | 7.16 | |||
| M12 | 1.50 | 11.96 | 11.79 | 10.89 | 3/8 | 24 | 9.497 | 9.315 | 8.74 | |||
| M14 | 1.50 | 13.96 | 13.79 | 12.89 | 7/16 | 20 | 11.08 | 10.87 | 10.18 | |||
| M16 | 1.50 | 15.96 | 15.79 | 14.89 | 1/2 | 20 | 12.67 | 12.46 | 11.76 | |||
| M18 | 1.50 | 17.95 | 17.78 | 16.86 | 9/16 | 18 | 14.25 | 14.03 | 13.25 | |||
| M20 | 1.50 | 19.95 | 19.65 | 18.85 | 5/8 | 18 | 15.84 | 15.62 | 14.83 | |||
