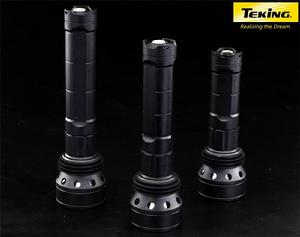

X3 Series HID FlashlightModel Lists and Specification:
Main Models and Specification
| Model | Lamp Power | Brightness (at6000K) | Irradiation Distance | Battery Capacity | Length | Run-time (max power) |
| X3-35-5200 | 35w/28w | 3100lm | ≥1.5 KM | 5200 Ah | mm | 1.5hrs |
| X3-25-3600 | 25w/20w | 1800lm | ≥1.0 KM | 3600 Ah | mm | 1.5hrs |
| X3-21-2600 | 21w/15w | 1200lm | ≥0.6 KM | 2600 Ah | mm | 1.5hrs |
Battery-Pack Models
| Model | Battery Capacity | Charging time | Length |
| B-X3-5200 | 5200 Ah | 2.5hrs | |
| B-X3-3600 | 3600 Ah | 1.5hrs | |
| B-X3-2600 | 2600 Ah | 1.0hrs |
Bulb Type: Xenon HID Lamp
Color Temperature: 6000K
Focus Range ：4°-12° adjustable
Bulb Life-time: 3000 hrs above
Input Voltage: 9~16V
Working: 18.5~4A, (7A Inrush Current)
Battery Type: Lithium-Ion
Battery Output Voltage: 11.1VDC
Battery Life-time: 600 times above
Housing Material: Alloy-Aluminum,T60601
Housing Surface: Hard Anodized III
Battery Charger:
Input: 100-240Vac 50/60Hz
Output: DC12.6V
Charging Time：2-5hrs
Operating Environment
Working: -20° ~ +40° C (while charging).
Storage: -20° ~ +40° C (without battery)
Housing Protection: IP54 (anti-dust & anti-rain)
1.Open the aluminum boxes, take out the HID flashlight and
battery pack,remove all packages.
2.Connect the Flashlight head with battery pack, screw tightly.
3.The first time, slightly touch the switch on the HID flashlight
tail, with 100% power lit the HID lamp;the second time slightly
touch the switch,with 70% power lit the HID lamp; the third time
touch the switch, the lights turns off.
4.Hold the rear section of the X3 Flashlight and slightly turn
the front-end part of the HID flashlight, focus adjustment can be
realized.
5.After use, loosen the battery pack from flashlight head,keep
them sepa-rately.
