產品系列(Products Series)：YDK-CD139
產品規格(Products specification)： 400V10000uF ±20%90*196MM 105℃（CHINA standard 2000H）105℃MAX 4000H （ENSURE 100000H）OPERATUIN AT 60℃LIFE：12年≈15*365*24H （MAX 200000H） 60℃ LITE 24年≈10*365*24H (capacitors's life is also effected by current,frequency,elevation,negative temperature)
編號（Number）：YDK10011010105
| 編 制 Designed | 核 準 Approved | 日 期 Date |
| 於文果 | 山野·冉 | 2011-01-19 |
| ● 鋁電解電容器使用說明 Notes for use of aluminum electronic capacitors | |
| 1.在電器迴路不清楚或不明確線路之極性時，則建議使用無極性電解電容器。 | 1.If circuit polarities are uncertain, Non-polar capacitors are recommended. |
| 2.無極性（或二極性）電解電容器，可使用在極性轉換的迴路或直流迴路上。 | 2.Non-polar (or Bi-polar) capacitors can be used in polaritiy- changing circuits or DC circuits. |
| 3.單極性電解電容器只能使用在直流電路上，其極性必需標明在適當之位置或在導針/端子之旁邊。 | 3.Polarized capacitors can be used in DC circuits only. Its polarity must be marked on the proper side of wire/terminal. |
| 4.電解電容器應儲存於低溫及乾燥之處所。 | 4.Capacitors should be stored at a place of cool and dry. |
| 5.電解電容器不可使用在周圍溫度超過標示之使用溫度範圍。 | 5.Capacitors cannot be used in a place of ambient temperature exceeding its marked temperature. |
| 6.電解電容器不適用於超過可容許紋波電流範圍之迴路之上，假如有需要耐高溫紋波電流之電解電容器，請與我們洽商詳情 | 6.Capacitors cannot be used in a circuit where ripple current exceeds its allowed range. Please contact us if you have requirement for high temperature and ripple current capacitors |
| 7.電解電容器經長久儲存，如果漏電流超出規格值，使用前應以額定電壓重新再老化30~60分鐘。 | 7.lf capacitors have been stored for a long time and its leakage current exceeds the specified value, please recharge for 30 to 60 minutes with rated voltage before using. |
| 8.電解電容器一般品不適用於驟然間之充放電，如需使用在快速充放電的場合，請與我們洽商。 | 8.Capacitors cannot be used in a circuit charge or discharge, lf use in a circuit of sudden charge is required, please contact us. |
| 9.使用於電解電容器之工作電壓， 不得超過額定電壓。 | 9.Application of working voltage to capacitors should not exceed its rated voltage. |
| 10.為了保護電解電容器之內部結構，其導針或端子不容許過分之拉力或承受的拉力，請參考JIS C 5102。 | 10.ln order to protect the internal structure, capacitors cannot be applied with over pull-force. Please refer to JIS C 5102. |
| 11.電烙鐵應與電容器塑膠套管保持適當距離，以防止過熱造成塑膠套管破裂。 | 11. Soldering iron should be kept in a suitable distance from vinyl sleeve of capacitor in order to avoid sleeve crack. |
| 12.電解電容器經波峰焊錫之程式，其焊錫槽之溫度絕對不容許超過260℃±10℃，時間10秒鐘。 | 12.For peak soldering , the solder temperature should not exceed 260℃±10℃ for 10 seconds. |
| 13.為了保護塑膠套管、印刷標示以及封口材料不被破壞，電解電容器不得以鹵化化學藥品或類似溶劑，作為電解電容器洗滌之用，如三氯乙烯、二甲苯類或酮類等。 | 13. In order to protect PVC sleeve, printed marks and sealing material, capacitors can not be cleaned with halogenated chemicals or similar solvent such as trichlorethylene, Xylene or Acetone, etc. |
| 14.本司規格之電容，品質依照JIS C 5141 標準。 | 14.Quality of our capacitors is in accordance with JIS C 5141. |
| 15.本公司之信賴性試驗方法，JIS C 5102 標準。 | 15.Reliability test methods for our capacitors are in accordance with JIS C 5102. |
| 16.本公司在生產過程中不使用破壞臭氧層之藥品。 | 16.None of Ozone Depleting Chemicals (ODC) is used in any manufacturing processes of yadacon Company. |

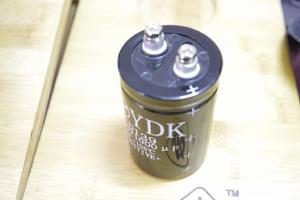

1．產品名稱(Products Name)： CD139系列鋁電解電容器 CD139series aluminum electrolytic capacitors
2．產品外形及安裝(Products Configuration and Installation)： 圓柱形、金屬外殼、單向引出、引出方式為螺栓式,有極性、有壓力釋放裝置(採用點動防燃裝置，當電容器內壓增加或產品發生擊穿時不會有易燃品飛出)。採用卡環固定安裝，不適用於直接安裝線上路板上。 Cylindrical form, metal case, unidirectional leads, derivative fashion is screw, polarity, press release device (It is from a point. When the capacitor’s internal pressure was increased or product was breaked ,inflammable materials will not fly down)。 Adoption card wreath fix install, not well used for direct install Circuit plank top 3.適用範圍及特徵(The Scope and Characteristics)： 該產品主要套用於工業變頻器、UPS電源、整流電源等電子設備的開關電源電路。具有可靠性高，能承受大紋波電流等特點。殼號可根據顧客要求適當調整。（The products are mainly used in Disply, Inverter, UPS Electrical Source and other Switching power supply circuits of electronic equipments. They have high reliability, withstand the large ripple current and other characteristics.Case can be adjusted appropriate under the request of the customer.） 4．性能要求(Performance Requirements)：
| 項目Item | 特徵 Characteristics | |
| 環境溫度 Operating Temperature Rang (℃) | -40℃~105℃(300~600wv,-25℃~105℃) | |
| 靜電容量變化率 Capacitance Tolerance (20℃\120Hz) | ±20% | |
| 漏電流 Leakage Current (μA) | 0.01CV or 5mA,whichever is smaller. 取小值 （at 20℃,after 5 minutes 5分鐘後）C:Nominal Capacitance (μF),V:Rated Voltage(V) | |
| 損失角正切值 Dissipation Factor(20℃ 、 120Hz) | 小於規格表值 Less than the value specified in the standed Products tables | |
| 壽命試驗 Load Life | +105℃ | 5000h |
| +95℃ | 10000h | |
| +85℃ | 20000h | |
| +75℃ | 40000h | |
| +65℃ | 80000h | |
| +60℃ | 100000h | |
| 漏電流 Leakage current | 小於規定值 Not more than the specidied value | |
| 容量變化率 Capacitance change | 初始值的±20%以內 Within±20%of the initial value | |
| 損失角正切值 Dissipation Factor | 不大於2倍規定值 Not more than 200% of specified value | |
| 貯存試驗 Shelf Life (+105℃) | 時間Time | 2000h |
| 漏電流 Leakage current | 小於規定值 Not more than the specidied value | |
| 容量變化率 Capacitance change | 初始值的±20%以內 Within±20%of the initial value | |
| 損失角正切值 Dissipation Factor | 不大於2倍規定值 Not more than200% of specified value | |
| After test:uR to be applied for 30 MINUTES,12 to 24 hours before measurement 試驗後：施加額定電壓30分鐘，放置12~24小時後測試 | ||
| 標 準 Standards | GB/T 2693-2001 總規範 ( General norms) GB/T 5993-2003 分規範 ( Sub-standard) GB/T 5994-2003 空白詳細規範(Blank detailed standard) Q/YDK.004-2005CD139型鋁電解電容器 CD139 series aluminum electrolytic capacitors | |
5．規格表(Specification Table)
| 額定電壓 Rated Voltage VDC | 標稱靜電容量 Cap（μF） | 漏電流 Leakage Curent （μA） | 損耗角正切 Dissipation Factor tan(δ) | 允許紋波電流 Ripple Current （Arms） | 外形尺寸 Size ΦD*L（mm） |
| 400 | 10000 | 5000 | 0.15 | 85.4 | 90*196 |
漏 電 流(Leakage Curent)：20℃，2分鐘測試(2-minute test) 損耗角正切(tgδ)：20℃，120Hz 紋波電流(Ripple Current)：40℃，120Hz 6. 紋波電流校正係數 MUTIPLIER FOR RIPPLE CURRENT 7電感內阻頻率（inductance ESR FREQUANCY)
| 頻率（HZ） | 120 | 1K | 10K |
| ESR（歐姆） | 0.019 | 0.032 | 0.03 |
| ESL電感（nH） | -200 | -2.8 | -0.03 |
8. 印記 MARKING 商標名稱: Trademark name : YDK 系列 Series: CD139 標稱電壓和容量 Rated voltage and nominal capacitance: 400V10000uF±20% 90*196MM 套管顏色 Sleeve color: black 黑色 標貼顏色 Color labels：Silvery white銀白 印記顏色 Marking color:black 黑色 日期代碼 Date code: 11 01 01 序號 月份 2011年 本產品為底部不帶螺栓，請嚴格對照後選擇，如果需要底部帶螺栓請通知我們。
