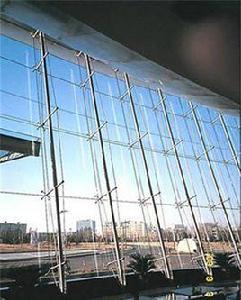

介紹
性能說明：
效果通透，可使室內空間和室外環境自然和諧。構件精巧，結構美觀，實現精美的金屬結構與玻璃裝飾藝術的完美融合。
支承結構多樣，可滿足不同建築結構和裝飾效果的需要。
玻璃與駁接爪件採用球鉸連線，具有較強的吸收變形能力。
詳細說明
藝術鋼結構
Artistic steel structure system
●結構體系——由曲面鋼管網殼體系與曲面索網體系組成的複合結構系統。網殼體系抵抗外部荷載作用，平面內穩定由索網體系承擔；魚腹式平面鋼管桁架體系，結構合理、經濟。 Structural system—a composite system combined with curved-surface steel pipe network shell system and curved-surface cable network system; a feasible and economical fish-bellied surface steel pipe truss structure is applied. Network shell system bears the exterior load, while the cable network undertakes the interior stability.
●連線特點——鋼管構件之間採用萬向鉸球狀嵌入式節點；鋼管之間採用相貫焊接節點，線條流暢、節點精巧。
Connection features—steel pipe components are connected by embedded universal hinges joint. The intersection welding joint technology is adopted, which produces continuity and fine joints
●藝術特點——魚腹桁架平行布置，大方、通透；柔性體系、剛性體系與玻璃的結合是真正工業現代藝術的最完美體現。
Aesthetic characteristic—the fish-bellied truss is deployed horizontally, which makes it appears elegant and creates perception of depth. The combination with flexible system and rigid system and glass is a perfect demonstration in modern industry art.
空間張拉索桿
Space tensile rod and cable system
●結構體系——由曲面鋼管網殼體系與曲面索網體系組成的複合結構系統。網殼體系抵抗外部荷載作用，平面內穩定由索網體系承擔；結構採用橫向平面索桿桁架抵抗外部荷載作用，豎向索桿起平面外穩定作用及承受玻璃的自重荷載，是預應力幾何非線性柔性體系
Structure system--It is a composite structure combined with curved-surface steel pipe network shell system and curved-surface cable network system.
Horizontally deployed trusses are adopted to resist the exterior load, while vertically deployed trusses ensure exterior stability and undertake the dead load of glass. It is a non-linear geometry of flexible pre-stressed system.
The network shell system resists the exterior load, while the cable system ensures the interior stability.
●連線特點——鋼管構件之間採用萬向鉸球狀嵌入式節點。
Connection features--Steel tube components are connected by embedded universal hinges joint.
●藝術特點——柔性體系、剛性體系與玻璃的結合是真正工業現代藝術的最完美體現。
Architectural effects--The combination with flexible system and rigid system and glass is a perfect demonstration in modern industry art.
●適用範圍——主要適用於高寬比大的層間洞口，更合理經濟的利用了結構的受力機理。
Applicable range--this system is suitable for the opening between stories with large height-width ratio. This specific application makes better of loading mechanism of the structure.
●建築效果——幕牆通透、明亮、輕巧。
Architectural effects--It can provide satisfactory perception of depth, plentiful light as well as an impression of simplicity.
自平衡張拉索桿
Self-balance tensile cable system
●結構體系——結構由拉索或拉桿與鋼結構組成，是預應力自平衡體系。
Structure system--The structure consisting of cable/rod and steel structure is a pre-stressed self-balancing system.
●結構特點——拉桿及拉索採用先張法施加預應力，預應力依靠自身結構平衡，在外部荷載作用下極大的降低了傳遞給主體結構的荷載。
Connection features--Pre-stress, which is imposed to the cables and rods by pre-tensioning, greatly reduces exterior load carried to the building structure by its own self-balancing mechanism.
●建築效果——簡潔、明快、緊湊。充分體現了鋼的挺拔與索桿的輕柔之美。
Architectural effects--Its simplicity and compactness set a typical example of the tough beauty of steel and the beauty of flexibility.
單層索網支撐
Single-layer cable network system
●結構體系——由大型懸索與單層正交索網體系構成的內凹式柔性索網點支撐體系；結構由橫豎拉索交叉編織的單層平面索網結構抵抗外部荷載作用，是預應力幾何非線性柔性體系。
Structure system--It is a flexible concave cable network system consisting of large scale suspending cable structure and single-layer network of crossing cables. The structure is a non-linear geometry of flexible pre-stressed system and resist exterior load by the single-layer network of cable structure consisting of cables crossing vertically and horizontally.
●結構特點——結構基於網球拍的原理，索網通過施加的預應力產生抵抗平面外荷載的剛度。
Structural features--Design of this structure bases on the mechanism of pre-stressing (like tennis racket). Rigidity to resist the exterior load is provided by the pre-stress imposed to the cable network.
●適用範圍——適合於中庭入口立面等大跨度洞口部位。
Applicable range--This system is suitable for large-span entrance space on building façade, such as facades with atrium entrance.
●建築效果——是最通透的幕牆系統，給您一覽無餘的視覺衝擊和壯觀、磅礴、宏偉、極具震撼的視覺效果。
Architectural effects--It is a system providing the most transparent visual effect. It is breathtaking and spectacular.
●產品特點——大型懸索牽引單層正交索網體系通過先進的找形技術，可形成不同形狀的內凹折面幕牆。
Product features--Large-scale suspending single-layer cable network provides a variety of shades of concave curtain walls by advanced form-finding technology.
●抗震能力——單索錨固端的減震阻尼器、懸索之間的擺動機構使結構具有優越的抗震性。
Seismic force resistance--damped diaphragm fixed at the anchor of cables and the swinging mechanism between cables produce excellent seismic force resistance performance.
