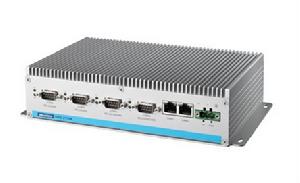

研華UNO-2174A

sion tern sion

產品簡介

研華UNO-2174A是內含英特爾凌動處理器的無風扇嵌入式工業電腦。研華UNO-2174A採用低功耗凌動D510 1.66GHz

處理器，板載2GB DDR2 RAM，千兆乙太網連線埠，豐富的I/O，2個Mini PCIe槽，可靈活擴展Wi-Fi / 3G模組，兼容Windows 7。研華UNO-2174A具有能量之星認證，IP40防塵等級認證，-10 ~ 70° C寬溫運行等特性。另支持PC/104和PCI-104子板擴充外掛程式、附加I/O模組和匯流排卡等。功耗更低、性能更加卓越。 UNO-2174A是嚴苛工業環境的理想而經濟的選擇，套用領域包括：工廠自動化、設備自動化、危險源監控、太陽能光伏、環境監測、樓宇節能等。

產品配置

		UNO-2174A-A23E
General	Power Consumption	12 W
	Mounting	DIN-rail, Wallmount, VESA
	Certifications	Energy Star, CE, FCC class A, UL, CCC
	Weight	2.5 kg
	Dimensions	255 x 152 x 50 mm(10" x 6.0" x 2.0")
	Enclosure Housing	Aluminum + SECC
	OS Support	WES Windows XP Embedded, Windows XP, Windows 7, WES7, Windows CE 6.0, Linux, QNX
	Industrial Grounding	Isolation between chassis and power ground
	Power Requirement	9 ~ 36 VDC (e.g +24 V @ 1.5 A) (Min. 36 W), ATX
	System Design	Fanless design with no internal cabling
	Remote Management	Built-in Advantech DiagAnywhere agent on Windows CE, WES2009, WES7
System Hardware	CPU	Intel Atom N450 1.6 GHz
	Memory	2 GB DDR2 SDRAM built-in
	Storage	CF: 1 x front-accessilbe type I/II CompactFlash? slot HDD: Build-in one 2.5" SATA HDD bracket
	Keyboard/Mouse Ports	1 x PS/2
	Audio	Line in, Line out, Mic in (5.1 channel HD audio)
	Display	DB15 VGA connector, UNO-2174A supports
Processor System	Watchdog Timer	Programmable 256 levels timer interval, from 1 to 255 sec
System Hardware	Indicators	LEDs for Power, CF, LAN (Active, Status), Serial (Tx, Rx)
	PC/104 Slot	PCI-104 slot, supports +5 & 3.4V power
	Mini PCIe Expansion	2 x Mini PCIe slots with 1 x SIM card
I/O Interface	Serial Ports	2 x RS-232/485 (COM1-2), 2 x RS-232/422/485 w/ 128kB FIFO
	LAN	2 x 10/100Base-T RJ-45 ports (Built-in boot ROM in flash BIOS)
	USB	6 x USB 2.0
Environment	Temperature (Operating)	-10 ~ 70° C (14 ~ 158° F)
	Humidity (Operating)	95% @ 40° C (non-condensing)
