TDA1517套用在什麼東西上面
套用比較廣泛.功放板.帶音頻的液晶電視主機板.各種音箱.廣告機,車載音箱也能看見它的身影

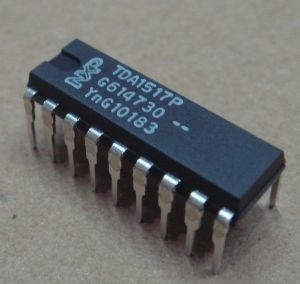

TDA1517P套用電路圖
TDA1517P套用電路圖TDA1517P引腳功能

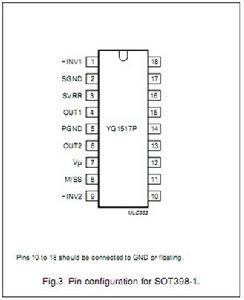

引腳功能圖引出端序號 符號 功能
1 IN1 輸入 1 端
2 Pre-GND 信號地
3 RR 紋波濾波端
4 OUT1 輸出 1 端
5 PWE-GND 功放地
6 OUT2 輸出 2 端
7 Vcc 電源
8 Mute/STB 靜音/待機控制端
9 IN2 輸入 2 端
10～18 Pwe-GND 功放地

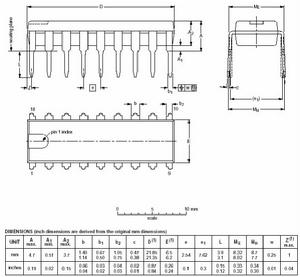

TDA1517P封裝形式
TDA1517P封裝形式TDA1517P與YG1517P測試數據對比
1# NXP TDA1517 主要項目測試數據：
vcc1= 14550 mV PASS
vcc2= 14475 mV PASS
******* Isqc @ Vcc=18V Mute=0V******
isqc= 7.50 uA PASS
******* Svrr @Vcc=14.4V Mute=0V Load=0mA ******
Svrr= 2005 mV PASS
******* Vout L LEVE @Vcc=14.4V 4R******
******* Vout L THD @Vcc=14.4V 4R******
Vlll= 2505 mV PASS
Vlld= 8 THD PASS
******* Vout R LEVE @Vcc=14.4V Mute=0V RL=4R******
******* Vout R THD @Vcc=14.4V Mute=0V RL=4R******
RLL= 2535 mv PASS
Vrld= 7 THD PASS
2# NXP TDA1517 主要項目測試數據：
vcc1= 14550 mV PASS
vcc2= 14450 mV PASS
******* Isqc @ Vcc=18V Mute=0V******
isqc= 10.00 uA PASS
******* Svrr @Vcc=14.4V Mute=0V Load=0mA ******
Svrr= 2005 mV PASS
******* Vout L LEVE @Vcc=14.4V 4R******
******* Vout L THD @Vcc=14.4V 4R******
Vlll= 2505 mV PASS
Vlld= 8 THD PASS
******* Vout R LEVE @Vcc=14.4V Mute=0V RL=4R******
******* Vout R THD @Vcc=14.4V Mute=0V RL=4R******
Vrll= 2520 mv PASS
Vrld= 7 THD PASS
3# NXP TDA1517 主要項目測試數據：
vcc1= 14550 mV PASS
vcc2= 14450 mV PASS
******* Isqc @ Vcc=18V Mute=0V******
isqc= 10.00 uA PASS
******* Svrr @Vcc=14.4V Mute=0V Load=0mA ******
Svrr= 2020 mV PASS
****** Vout L LEVE @Vcc=14.4V 4R******
******* Vout L THD @Vcc=14.4V 4R******
Vlll= 2505 mV PASS
Vlld= 8 THD PASS
******* Vout R LEVE @Vcc=14.4V Mute=0V RL=4R******
******* Vout R THD @Vcc=14.4V Mute=0V RL=4R******
Vrll= 2535 mv PASS
Vrld= 7 THD PASS
4# NXP TDA1517 主要項目測試數據：
vcc1= 14550 mV PASS
vcc2= 14450 mV PASS
******* Isqc @ Vcc=18V Mute=0V******
isqc= 10.00 uA PASS
******* Svrr @Vcc=14.4V Mute=0V Load=0mA ******
Svrr= 2015 mV PASS
******* Vout L LEVE @Vcc=14.4V 4R******
******* Vout L THD @Vcc=14.4V 4R******
Vlll= 2485 mV PASS
Vlld= 9 THD PASS
******* Vout R LEVE @Vcc=14.4V Mute=0V RL=4R******
******* Vout R THD @Vcc=14.4V Mute=0V RL=4R******
Vrll= 2505 mv PASS
Vrld= 8 THD PASS
5# NXP TDA1517 主要項目測試數據：
vcc1= 14550 mV PASS
vcc2= 14450 mV PASS
******* Isqc @ Vcc=18V Mute=0V******
isqc= 10.00 uA PASS
******* Svrr @Vcc=14.4V Mute=0V Load=0mA ******
Svrr= 2010 mV PASS
******* Vout L LEVE @Vcc=14.4V 4R******
******* Vout L THD @Vcc=14.4V 4R******
Vlll= 2433 mV PASS
Vlld= 10 THD PASS
******* Vout R LEVE @Vcc=14.4V Mute=0V RL=4R******
****** Vout R THD @Vcc=14.4V Mute=0V RL=4R******
Vrll= 2490 mv PASS
Vrld= 8 THD PASS
YG TDA1517主要項目測試數據：
vcc1= 14550 mV PASS
vcc2= 14450 mV PASS
******* Isqc @ Vcc=18V Mute=0V******
isqc= 10.00 uA PASS
******* Svrr @Vcc=14.4V Mute=0V Load=0mA ******
Svrr= 2010 mV PASS
******* Vout L LEVE @Vcc=14.4V 4R******
******* Vout L THD @Vcc=14.4V 4R******
Vlll= 2463 mV PASS
Vlld= 9 THD PASS
******* Vout R LEVE @Vcc=14.4V Mute=0V RL=4R******
******* Vout R THD @Vcc=14.4V Mute=0V RL=4R******
Vrll= 2443 mv PASS
Vrld= 9 THD PASS
